My version of an amp install

Lets start with running the wire from the battery. Maybe 8 gauge is enough, I used 4 gauge.
You’ll need an adapter (car parts or stereo shop) to hook up to.
Before

After

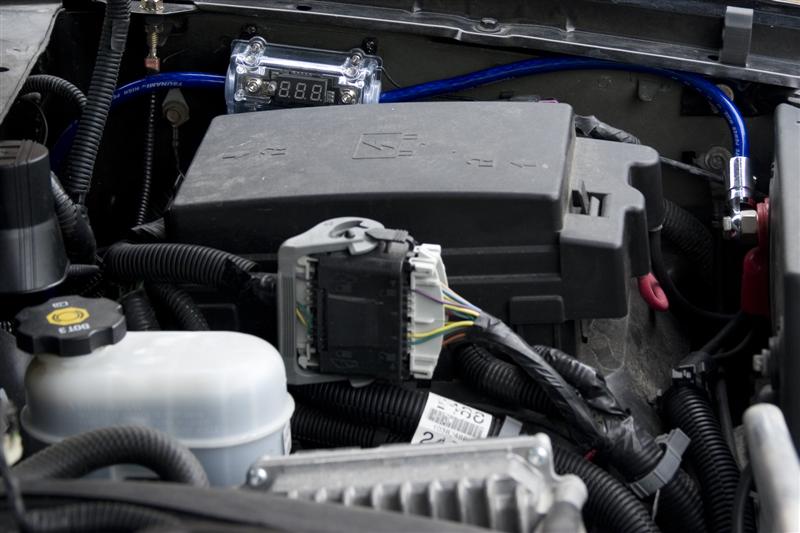

Then to a fuse holder.

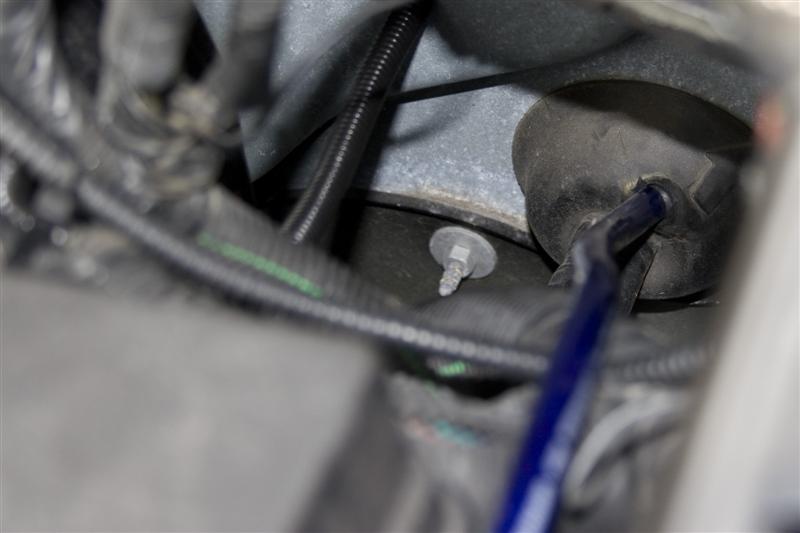

To get the wire inside the truck, I went inside with a screwdriver and poked a hole through the trucks wiring harness boot, then when I fished the wire through – it was pretty tight – but I’ll probably silicone it too.

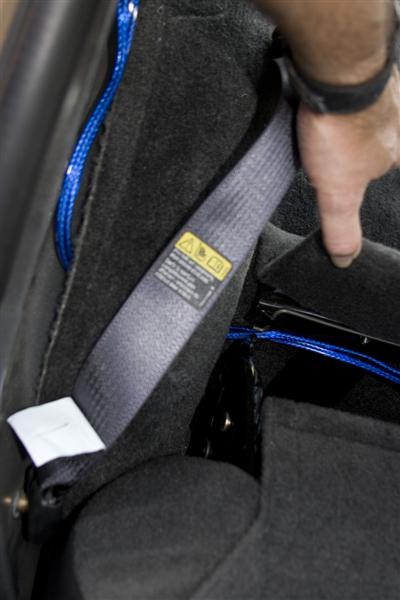

Lift the plates off at the front and back door sills and run the wire back to in under the back seat – then put a slice in the carpet and fish it to another slice where your amp is.





Now to the factory amp. Remove the passenger side rear plastic pieces. I don’t have pictures of that, just do it! If there isn’t a visible screw (one large torx for the seatbelt, a phillips partway back and a knob at the rear hatch), it’s just snap connectors – just pull them off.

The rear speaker wires are the lower plug. (for my 05 TB)
Brown – left rear+
Yellow – left rear-
Dark Blue – right rear+
Light Blue – right rear-

Tap into the wire by stripping a section of insulation off. Here’s the dark blue.

Solder and tape the connections. You can see I also tapped into the top plugs pink wire – it’s the remote turn-on wire for the amp.



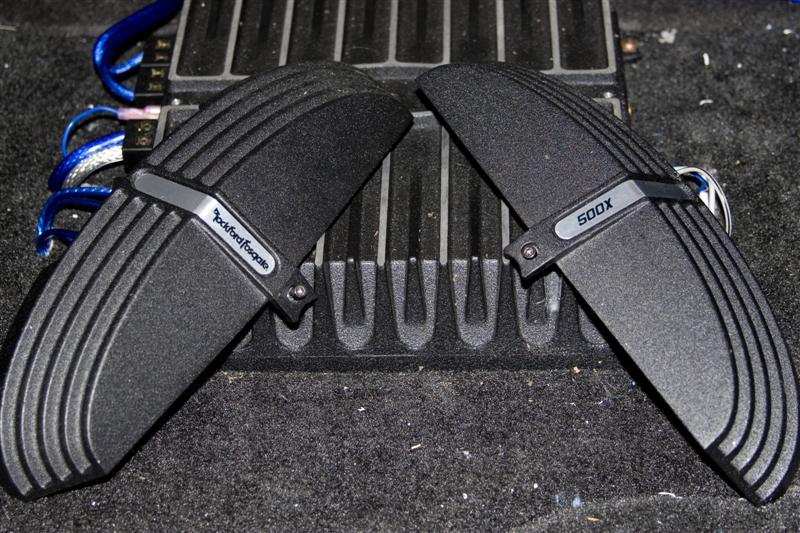

Then run the speaker wires (the ones you just tapped into at the factory amp) to the amp you’re installing. My Rockford amp has hook-up for speaker level input so I’m using that (at least until I replace the head unit!) - (if you’re using a line-out-converter you’d wire it in somewhere between here and there). I ran them front and underneath the rear seat and with another slice’n fish under the carpet to the amp.

Then run your speaker wires (from your new amp) to your speakers.
You probably have to write the rest yourself – but I’ll show you what I did!
I ran them back under the carpet and up the corner post.

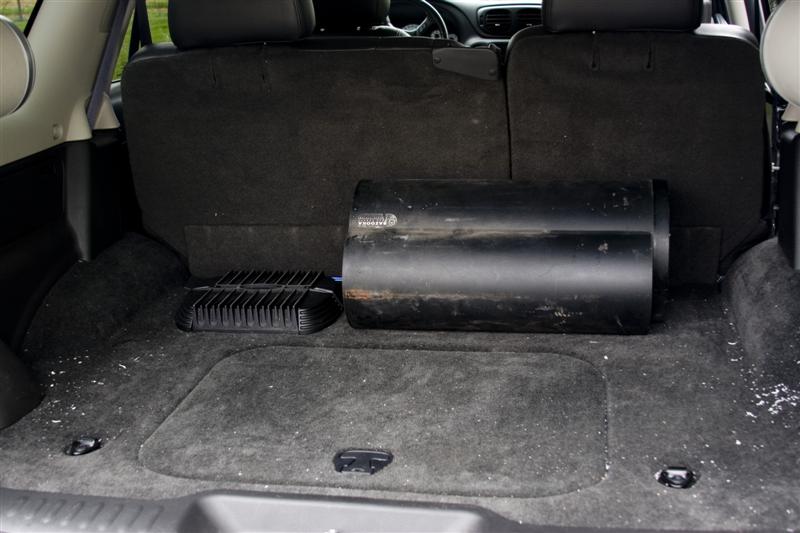

and a short one to my sub (everything REALLY needs cleaned up – oh well!)

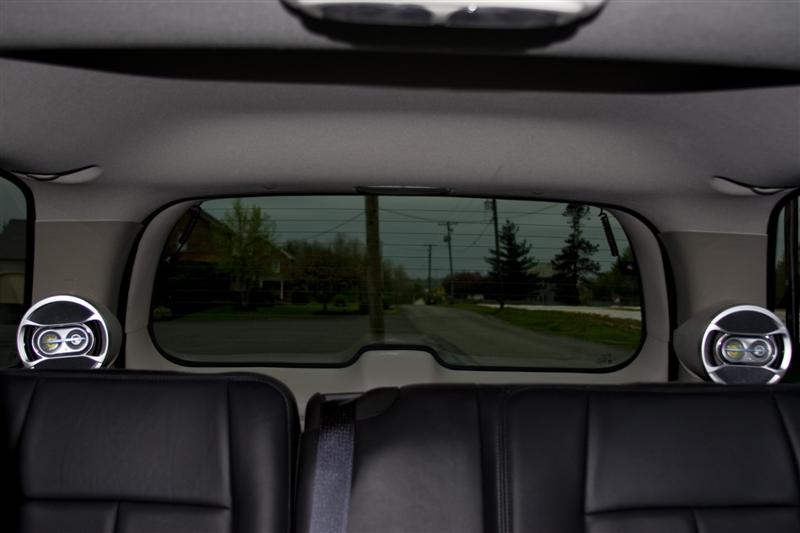

Looking back.

Rock on!
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 04-26-2008, 11:09 PM
ieatglue's Avatar
ieatglue ieatglue is offline
TrailVoy Guru

2003 Chevy TrailBlazer LT EXT
Onyx Black 4.2L I6 4X4
Join Date: Aug 2005
Location: Toronto, Ontario
Posts: 8,770
Right on!! That's way better than my amp installation how-to
__________________
Horsepower is how fast you hit a wall, Torque is how far you take the wall with you

THESE BIG RED LETTERS HELP ME FIND MY POST
Reply With Quote Quick reply to this message
  #3
Old 04-26-2008, 11:18 PM
BLAZEN03's Avatar
BLAZEN03 BLAZEN03 is offline
TrailVoy Alumni

2003 Chevy TrailBlazer LS
Summit White 4.2L I6 2WD
Join Date: Oct 2006
Location: Whittier, SoCal
Posts: 1,744
Looks good. I bet the sound is alot better back there, these trucks don't have that great of sound for rear passengers. By the way how deep iss that back pillar? I've been thinking of putting some 3.5" flush in that area
Reply With Quote Quick reply to this message
  #4
Old 04-27-2008, 07:49 PM
chevtrlblzr's Avatar
chevtrlblzr chevtrlblzr is offline
TrailVoy Alumni

2005 Chevy TrailBlazer LT
Black 4.2L I6 4X4
Join Date: Feb 2008
Location: SE Pa
Posts: 1,339
EDIT
I'm not sure why I can edit this post but not the original but, I wanted to add;
A note on the install. The ground wire is just as important as the power wire. The best thing to do would be - drill a hole through the floor and ground it right to the frame. Don't just use any bolt to attach it. I looked at the seats and some bolts, you would have to count on;
1. you wire brushing the paint off and making a good connection.
2. that bracket goes to another bracket - through a hinge that you're counting on for a great connection (unlikely)
3. that bracket actually is bolted to another bracket - both painted and hindering a ground.
4. that last painted bracket is bolted to your painted floor which is attached by body mounts.
Yeah - it might be OK, but if there's problems, is it any wonder!


Quote:
Originally Posted by BLAZEN03 View Post
Looks good. I bet the sound is alot better back there, these trucks don't have that great of sound for rear passengers. By the way how deep iss that back pillar? I've been thinking of putting some 3.5" flush in that area
Thanks

Yeah, it sounds a lot better but the thump isn't quite what it should be. It's the same amp and sub from my last blazer but I had an after market head unit with 2 sets of RCA's - one for the rear speakers and one set specifically for a sub. I'm wondering if the factory HU is sending the full spectrum of sound to the rear speakers or if it is eliminating some of the lows. My amp has settings for front and rear - HP(high pass), AP(all pass), and LP(low pass). I have the 6 1/2's set at AP and the sub at LP. More tinkering needed!

As for room in the rear pillars, There's not much room between the plastic and metal - just guessing 1/2" - 1 inch. There's a (guessing) 2" x 4" slot in the metal at about the right height that could be enlarged if needed I suppose. Open your back hatch and grab the top plastic panel on the drivers side at the top rear - give it a tug toward the passenger side - there's 2 or 3 clips that'll let loose 'n ya can peek in there!
Reply With Quote Quick reply to this message
  #5
Old 04-27-2008, 09:50 PM
sholiz's Avatar
sholiz sholiz is offline
Member

2002 Chevy TrailBlazer LTZ
Black 4.2L I6 4X4
Join Date: Feb 2008
Location: Michigan
Posts: 242
*Tip for everyone*

Careful how you run the wires behind the seats folding hardware ... there's a lot of moving parts there and a friend who put my seat up kinked an RCA when I installing the headunit
Reply With Quote Quick reply to this message
